A very individual and customer-specific testing option can be realised using test axes, test fields and test portals, as these can be adapted to the test task again and again. DYNA-MESS supplies the equipment for these systems.
It is also possible to hire out systems or components.
We are DYNA-MESS. Test Systems.
Test axles and test cylinders
For the flexible construction of specific test facilities, test axes consisting of
- Test cylinder
- Servo valve
- Force measuring element
- Distance measuring system
are used.
Servo-electric test axes
- Static tests
- SPIAx/E LCF : dynamic tests in cyclic operation up to 1000 mm/s
- SPIAx/E HCF : dynamic tests up to 100 Hz
- SPIAx/E HD : dynamic tests in cyclic operation at ambient temperatures from -40 °C to +85 °C
Servopneumatic test axes
- Static tests

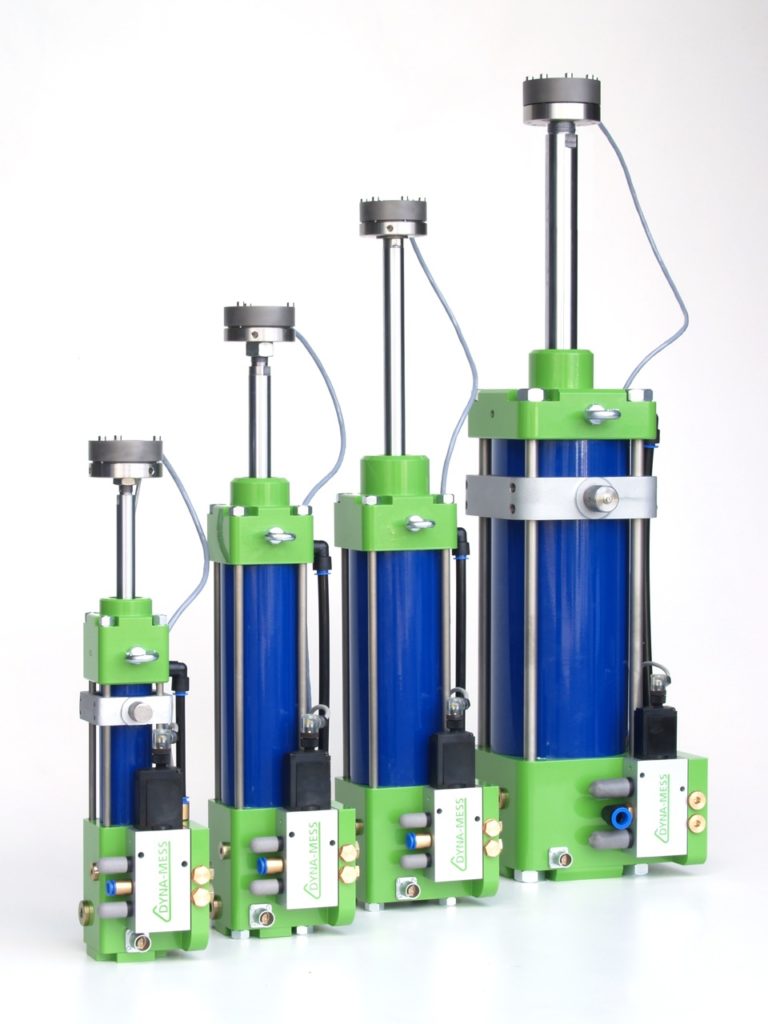

- Type SPIAx/P LCF : dynamic tests up to 10 Hz
- Type SPIAx/P HF : dynamic tests up to 35 Hz
Servo-hydraulic test axes
- Static tests
- SPIAx/H LCF : dynamic tests up to 10 Hz
- SPIAX/H HCF : dynamic tests up to 100 Hz
Optional
- Shear force support
- Trunnion
- Cardanic suspension
- and more
Test fields
Great flexibility can be achieved through the use of test fields. In addition to mobile hydraulic, electric and pneumatic test axes, DYNA-MESS supplies all power, control, electronic and software components. In particular, multi-axes systems can be realised, whereby the various axes can be flexibly set up and combined by the customer for the respective testing application.
For testing very large components, DYNA-MESS offers large systems with up to six test axes. Nominal forces of up to several meganewtons per cylinder and up to several metres of stroke can be achieved. In addition to static, destructive tests, dynamic fatigue tests can also be realised.
Test portals
DYNA-MESS test portals are available in various sizes and designs. They can therefore be customised for a wide range of testing tasks in the kilo to meganewton range.
T-slot plates are used to secure the test specimen. Electrical gantry movement in the x, y and z directions and the combination of several axes can be realised.
OUR SERVICES FOR YOU
Calibration
Adjusting test systems
Precisely calibrated for reliable measurement results and quality assurance
Maintenance
Maintain test systems
Professional maintenance for optimum performance and a long service life
Repair
Repairing test systems
Repairs for smooth operation and optimum performance
Modernisation
Test systems always up to date
Modern technology for improved performance and accuracy
Accessories
Upgrade test systems
Advanced functions and technologies complete testing machines
Training
Understanding test systems
User and topic training on all aspects of DYNA-MESS test systems
